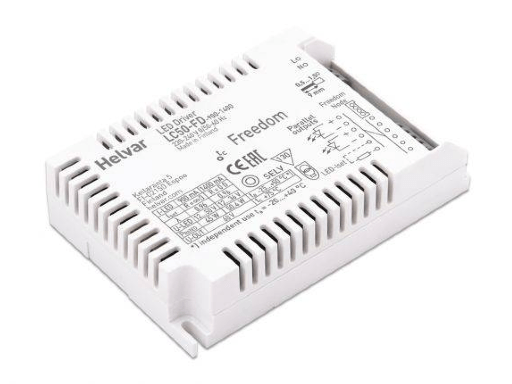

Freedom Compact LED driver

Article number: LCxx-FD-xx

Dimmable Freedom LED driver with future-proof Freedom Interface to power Mymesh Freedom Node. Compact shape.

Installation

Installation is very simple. Install the driver with freedom node and commission the device via the Mymesh App. Click-on strain relief available.

Technical

Electrical
  • 220 V – 240 V, 0 / 50 – 60 Hz
  • 198 VAC – 264 VAC
    • Control
    Helvar Freedom
    Dimensions/weight
    various
    IP rating
    IP20

    Network

  • Mymesh 2.4GHz

    • Features

  • Hybrid Dimming technology for high quality light output.
  • 1 - 100 % dimming range
  • Very high efficiency up to 87 %
  • Low current ripple
  • Suitable for DC use
  • Long lifetime up to 100 000 h
  • Driver protection Class II
  • Ideal solution for Class I and Class II
  • Also suitable for Class III (SELV)

    • Options

  • cable for Freedom BLC (excluded)
  • strainrelief (excluded)
