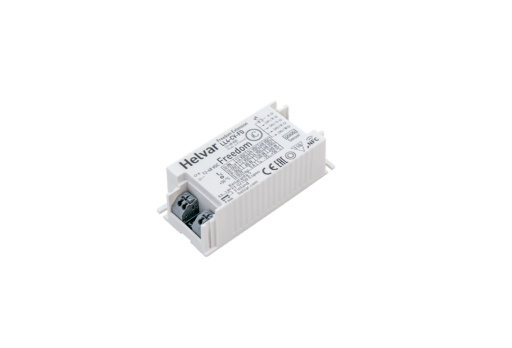

Helvar LL4-CV-FD

Article number: HEL.LL4-CV-FD

The LL4-CV-FD dimmable extension unit is designed to be used with the Helvar constant voltage LED drivers, creating controllable solutions for decorative lighting providing smooth colour control possibility with four separate output channels. It enables the use of Mymesh in constant voltage (12 / 24 V / 48 V) lighting applications and can be used for both RGBW and 2 x Tunable White control.

Installation

LL4-CV-FD LED driver extension is suited for built-in usage in luminaires as well as independent use.

Technical

Electrical
12 - 48 VDC
Control
  • 0.1 %-100 % dimming range
  • 1.25 kHz PWM dimming frequency
  • RGBW
  • Tunable White
    • Dimensions/weight
    88.5 x 43 x 30mm / 70g
    IP rating
    IP20

    Network

  • Mymesh 2.4GHz

    • Features

  • Stand-by power < 0.3 W
  • Class III device
  • Integrated radio unit for wireless control
  • Sensor output for external sensor use
  • Suitable for Class I, II or III (SELV) luminaires and independent use
  • independent output channels for RGBW

    • Options

  • Output current (I-OUT) Max. 5 A
  • Max output power 240 W
  • 4 channels
