DAN.CEFL

Article number: DAN.CEFL

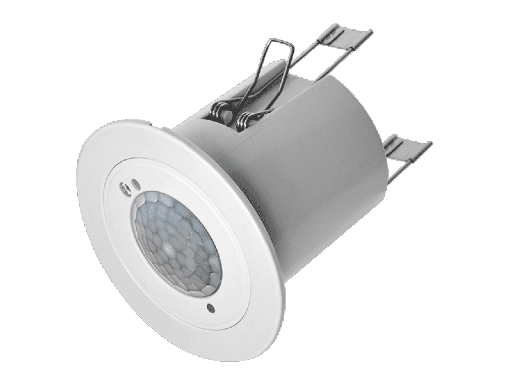

This flush mounted MYMESH-CEFL is suitable for easy mounting through a 73/75mm diameter hole into a ceiling void which is at least 78mm deep. Configurable for any room occupancy style.

Installation

To be installed by a competent person with reference to BS7671 or equivalent local standards. If in doubt consult a qualified electrician.

Technical

Electrical
100-240Vac 50/60Hz
Protection
class II
Dimensions/weight
ø85 x 79mm / 97g
IP rating
IP40

Network

  • Mymesh 2.4GHz

    • Detection

  • Installation height: 2.4-5m.
  • Range: upto 5/7m.

    • Lux range

  • 5 - 2000 lux
