Danlers Batten mount High-bay

Article number: DAN.BM17MDALI

The Danlers Batten mount sensor and controller easily integrates a batten-style fitting to a Mymesh network. You can commission the node via the Mymesh App and let it cooperate with other network devices.

Installation

Installation is very simple. Install the node on the side of luminaire (ø 20mm hole), connect (950mm wires) and commission the device via the Mymesh App.

Technical

Electrical
220-240Vac 50/60Hz
Control
DALI
Dimensions/weight
105 x 50 x 36mm / 88g / ø20mm
IP rating
IP40

Network

  • Mymesh 2.4GHz

    • Features

  • Dimming and switching

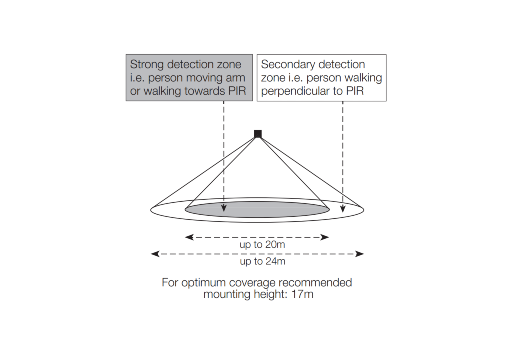

  • PIR upto 17m
  • lux sensor
  • Low energy consumption
  • Data logging
  • Visualise all logged data in Lumitel

    • Options

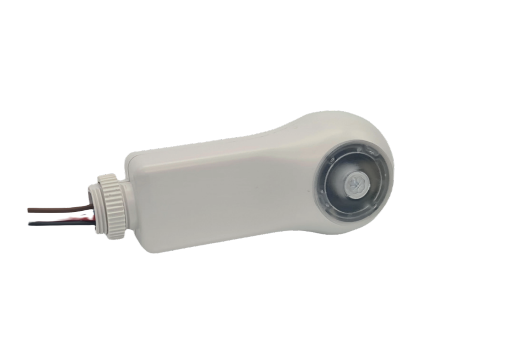

  • 5m PIR

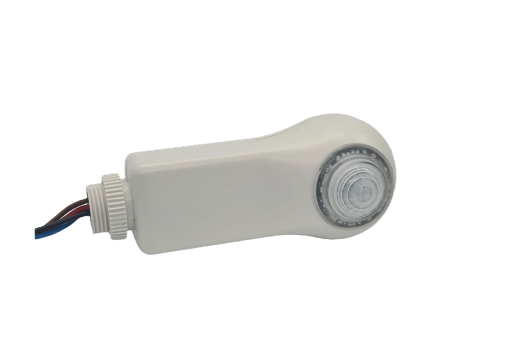

  • 17m PIR
