Chess connectivity

4G modem

Article number: CU.4Gmodem.004

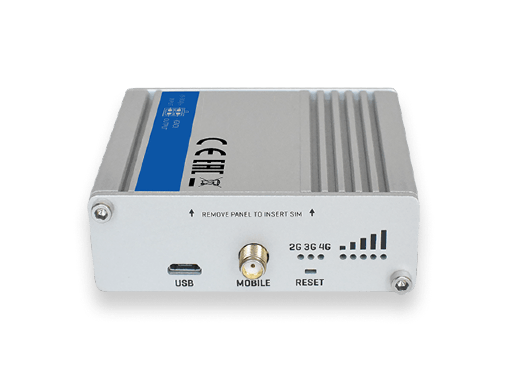

The 4G modem connects the Mymesh Gateway to the Cloud server via a roaming 4G mobile network. The industrial modem comes pre-configured including SIM card and 1 year data subscription.

Installation

  • The 4G modem has a rugged aluminium design and is easy to install. I only needs power and a cable connection to the Mymesh Gateway. DIN-rail bracket optional.

    • Technical

    Electrical
  • 220-240Vac 50/60Hz (via DC converter)
  • PoE
    • Connections
  • Ethernet (RJ-45 connector)
  • External antenna (2.5m cable)
    • Dimensions
    74.5 x 25 x 64.4 mm / 134g
    IP rating
    IP20

    Network

  • 4G/LTE (Cat 4), 3G, 2G
  • ethernet (LAN)

    • Features

  • Connects directly to the gateway to give Internet access
  • Secure 4G LTE connectivity with 3G fallback
  • 4G/3G antennas for better signal reception.

    • Notes

  • includes 1 year data subscription via a managed mobile connection (roaming)
